Configuration

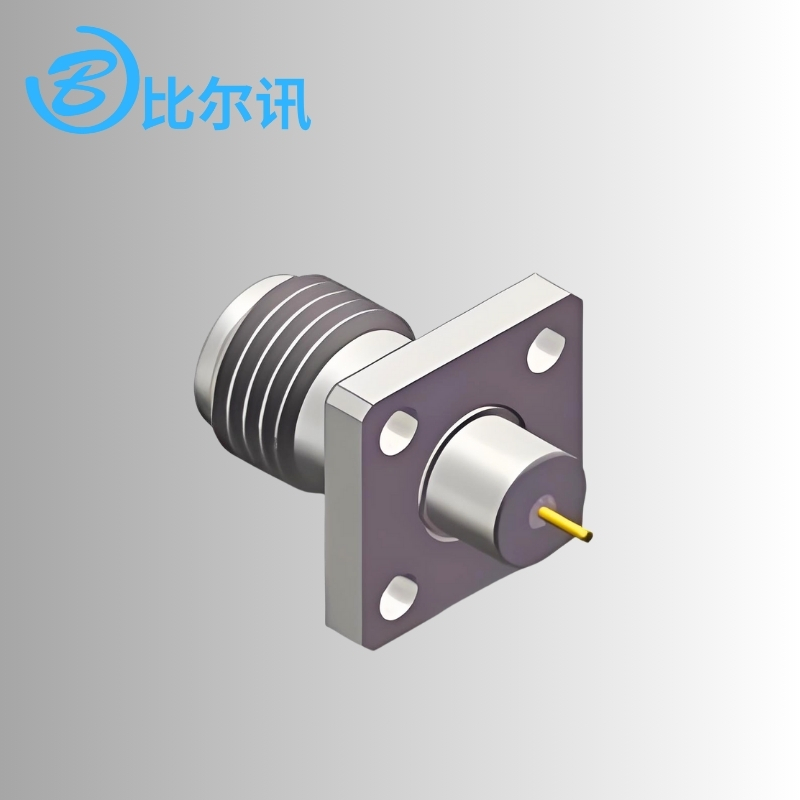

Connector 1
SMA Female

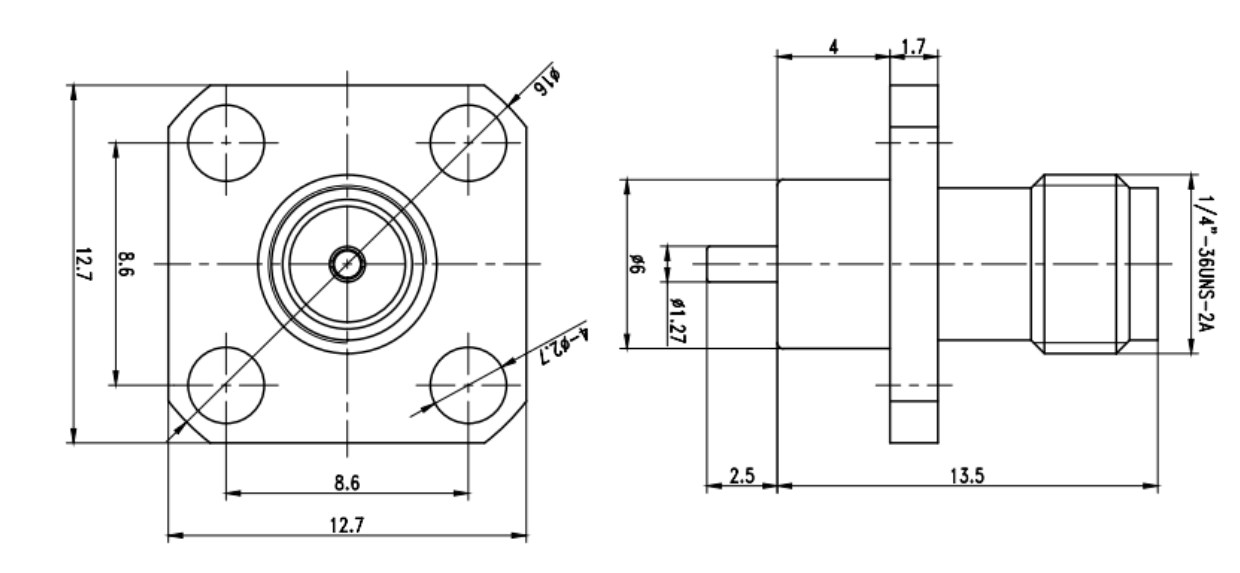

Connector 2 Diameter1
6.0mm
Connector 2 Length1
4.0mm
Connector 2 Diameter2
1.27mm
Connector 2 Length2
2.5mm
Connector Body
Stainless Steel Passivation
Connector Conductor
Beryllium Copper, Gold
Insulation
PTFE/AIR
Electrical Specifications
Impedance
50Ω
Frequency Range
DC-18GHz
VSWR
≤1.15
Dielectric Withstand Voltage
750Vrms
Environment Data
Working Temperature
-55℃ ~ +165℃
